Production of electrical cabins with prefabricated panels in Potenza

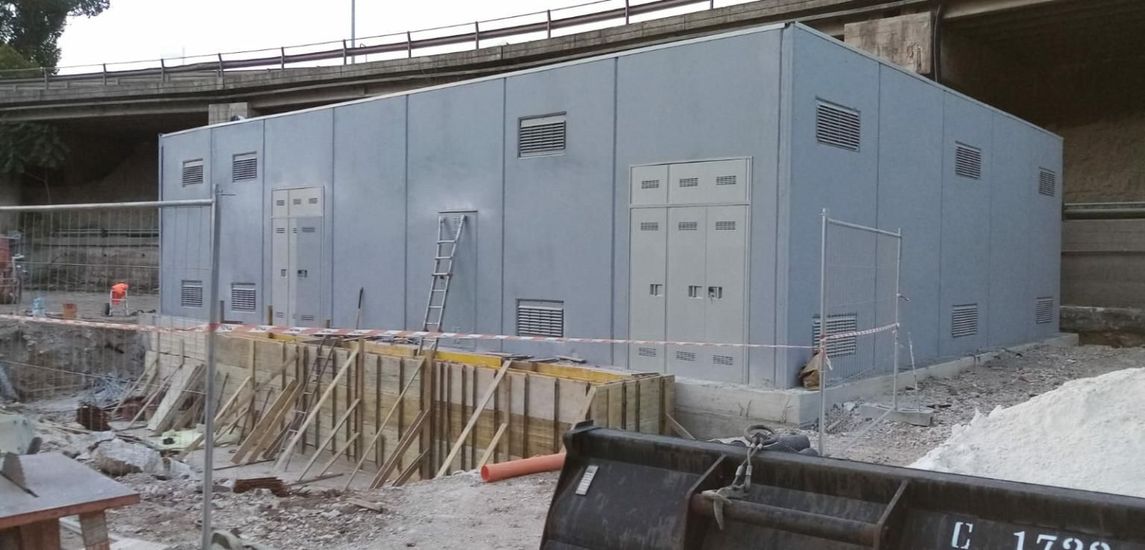

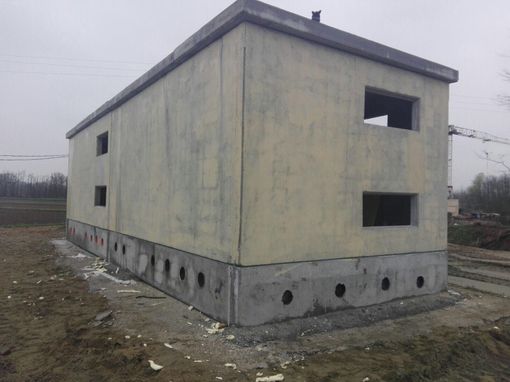

The prefabricated electrical cabins are constructed with prefabricated modular concrete panels installed directly on-site. In technical details, these cabins are custom-made according to the client's requirements.

Panel cabins are used when dimensions are non-standard, particularly when the width exceeds 3m. All elements are produced with self-compacting high-performance concrete with a strength class of not less than C 35/45, using CEM I 52.5 R cement in our mix. The steels used for the construction of the electrical cabin are of type B450C, and all structural elements are reinforced using double mesh and reinforcements where slots and holes are present. The cover iron used in the reinforcements is not less than 2.5cm. The floor has a minimum thickness of 15cm, the walls are not less than 13cm thick, and the slab is not less than 15cm thick. For fittings, doors, windows, grounding connection points, and all various accessories, only high-quality materials and products are used, and the windows can also be made of steel and aluminium according to the customer's request. For finishes, everything is executed directly on-site, using a 1.5mm acrylic-siloxane plaster, and the roof is covered with a waterproofing membrane consisting of bitumen-polymer membrane with cold flexibility -10°C reinforced with polyester wire and coated with slate, thickness 4mm excluding slate, or alternatively, a liquid waterproofing membrane is used. The construction of the cabin complies with the standards indicated in the technical specifications DG 2061 Ed.9 and DM 17.1.2018 and any technical specifications provided by the client.
