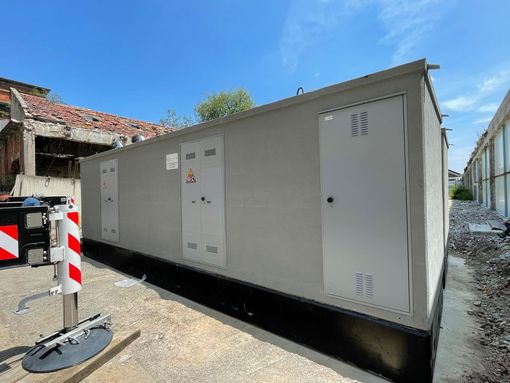

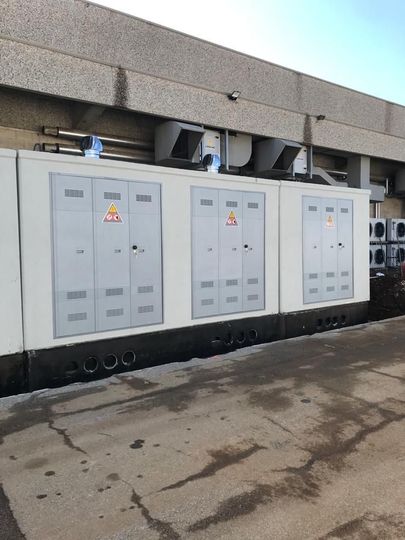

Single-block user cabins with variable and non-standard dimensions

These are electrical cabins made with a structure entirely in a single block and are composed of two elements, the box and the foundation tank. In the technical details, these cabins are custom-made according to the customer's needs, and the cover can also be removable upon request. The User Cabins comply with a maximum external length of 12m, internal usable height of 3m, and a maximum external width of 3m. All elements are produced with self-compacting high-performance concrete with a strength class of not less than C 35/45 using CEM I 52.5 R cement in our mix. The steels used for the construction of the electrical cabin are of type B450C, and all structural elements are reinforced using double mesh and reinforcements where slots and holes are present. The cover iron used in the reinforcements is not less than 2.5cm. The floor has a minimum thickness of 13cm, the walls are not less than 9cm thick, and the slab is not less than 12cm thick. For fittings, doors, windows, grounding connection points, and all various accessories, only high-quality materials and products are used, and the windows can also be made of steel and aluminium according to the customer's request. For finishes, a 1.5mm acrylic-siloxane plaster is used, and the roof is covered with a waterproofing membrane consisting of bitumen-polymer membrane with cold flexibility -10°C reinforced with polyester wire and coated with slate, thickness 4mm excluding slate, or alternatively, a liquid waterproofing membrane is used. The construction of the cabin complies with the standards indicated in the technical specifications DG 2061 Ed.9 and DM 17.1.2018 and any technical specifications provided by the client.
